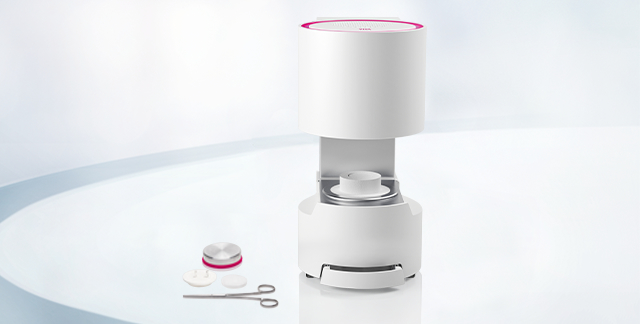

VITA SMART.FIRE® ADVANCED

Design meets efficiency. The compact furnace for bridges with up to 14 units.

The VITA SMART.FIRE ADVANCED combines modern design with reliable firing quality. Despite its compact design, it even offers ample space for up to 14-unit bridges – making it ideal not only for your practice, but also for all laboratories. Experience the intuitive, user-friendly operation with everything important at your fingertips, thanks to the convenient accessory drawer.

Attractive
Modern design and intuitive operation.
Compact
Space-saving design with large firing chamber.
Efficient
Safe firing process, thanks to controlled linear cooling.

With firing temperatures of up to 1,200 °C, the VITA SMART.FIRE ADVANCED is suitable for

  • the firing of ceramic, stain and corrections
  • Glaze firing
  • crystallization firings with and without vacuum

Thanks to the pre-programmed firing programs, which are optimally adapted to all common ceramic materials, it not only offers efficient processing, but also esthetically pleasing results.

VITA SMART.FIRE® ADVANCED

Technical functions

  • Service and monitoring programs, e.g. automatic temperature adjustment before every start of the program, temperature and vacuum control, counter for operating hours of firing muffles
  • Controlled linear cooling with freely selectable cooling gradients
  • Power failure protection
  • Adjustable vacuum values, adjustable pre vacuum and main vacuum
  • Lift monitor, adjustable lift speed
  • Freely adjustable lift positions for pre-drying and slow cooling

Technical data


Width 230 mm
Depth 300 mm
Height 340 mm
Weight 13 kg
Casing Polyurethan
Chamber diameter 80 mm
Chamber height 43 mm
Firing temperature 1200°C
Power supply 230 volt AC, 50 Hz or 100/110 volt AC, 50/60 Hz
Power consumption 950 W (230 V), max. 1100 W (100 V, 110 V)
Classification Protection class 1

VITA SMART.FIRE ADVANCED Accessories

2 x platinum pins
1 x Firing pad round (Ø 44 mm)
1 x firing trays
1 x firing pliers
2 x cooling trays

Accessories (can be purchased separately):

  • Vacuum pump or Vacuum pump II
